Co2 rock breaking system
The Co2 rock breaking system is a new type of rock breaking equipment that can replace explosive blasting. There is no vibration, shock wave, open flame, or harmful gas during the process of using Co2 rock breaking system, which is very safe and convenient. Most importantly, it can be reused, which significantly reduces the construction cost. The emergence of Co2 rock breaking system perfectly solves the problem of the prohibition of blasting in mines and rock excavation and the low efficiency of hydraulic breakers. It has been widely used in mining, quarrying, highway construction, foundation construction, tunnel excavation and other fields.
co2 rock breaking system -- Download PDFHow It Works
Product Principle

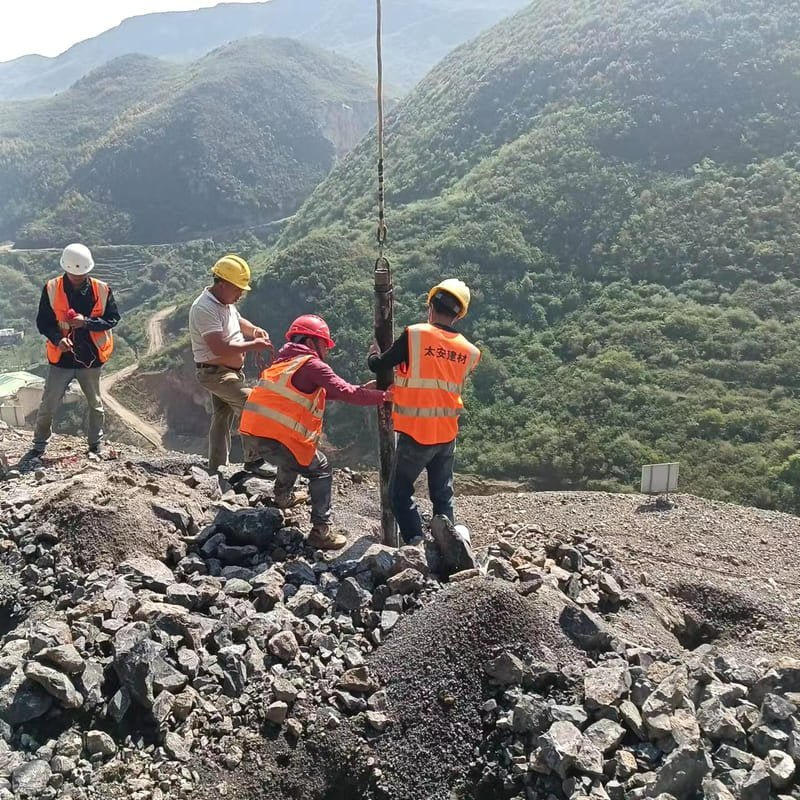

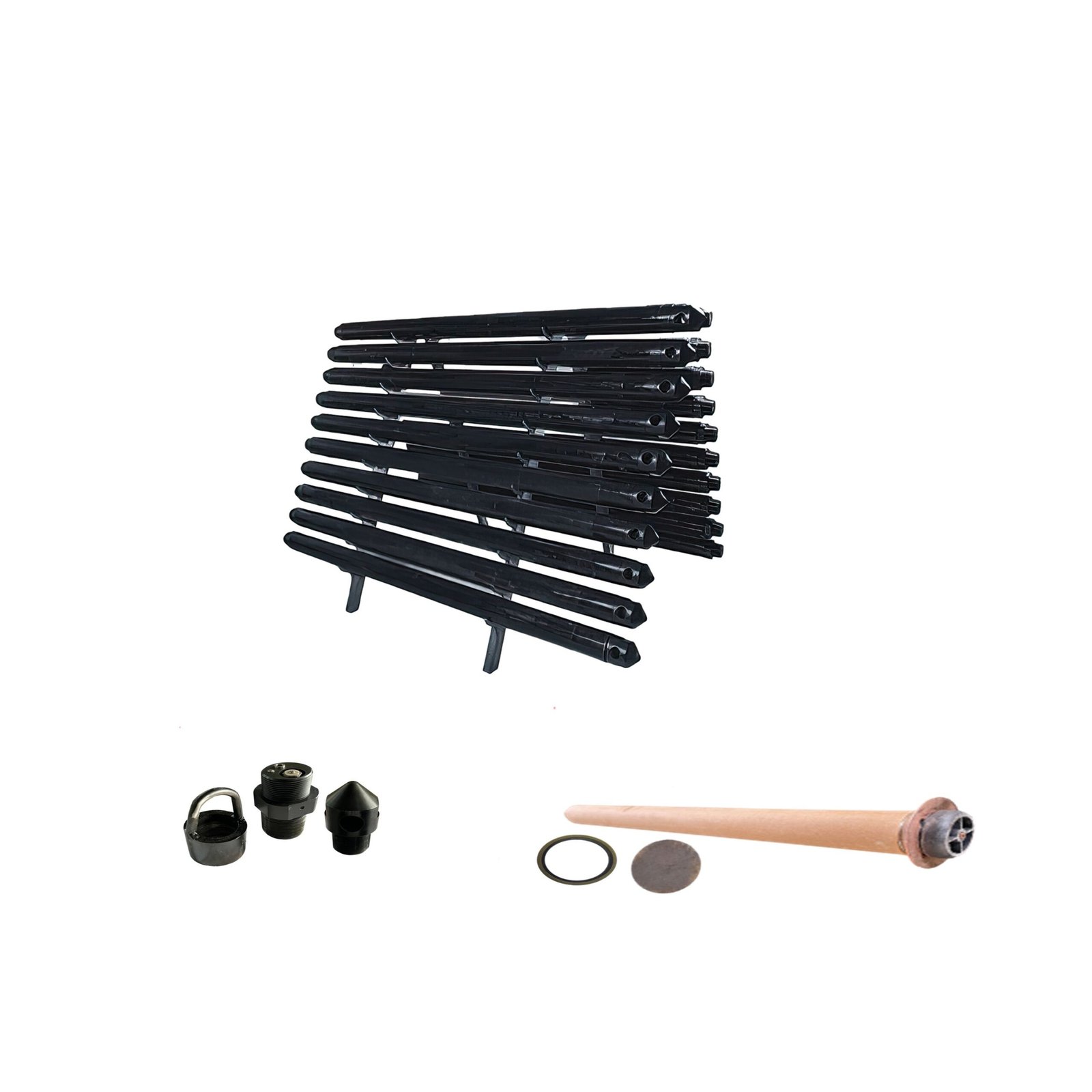

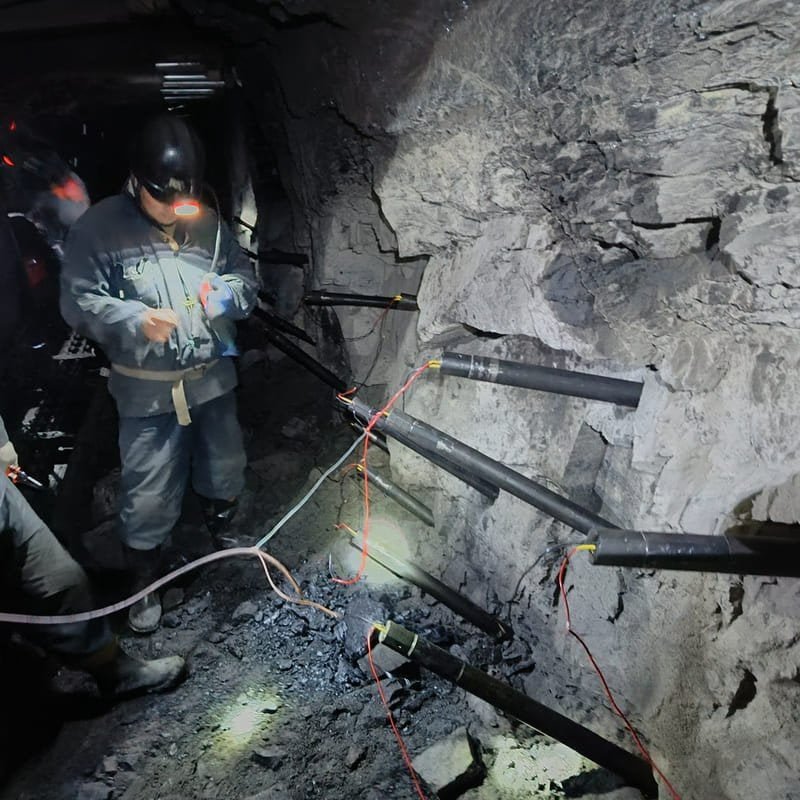

Below the critical temperature (-31.1 degrees Celsius), Co2 is in the state of liquid Co2. When the temperature gets higher, it will become gas and its volume will expand. The Co2 rock breaking system takes advantage of this feature. During on-site construction, put rock breaking steel pipes into the pre-drilled holes. After starting initiator, liquid Co2 will vaporize at once and its valume will expand 600 times. Hence, strong energy is released in confined space，which will burst sealing gasket at the end of vent head, releasing strong stress wave to breaking up surrounding rocks.
Why Choose Us

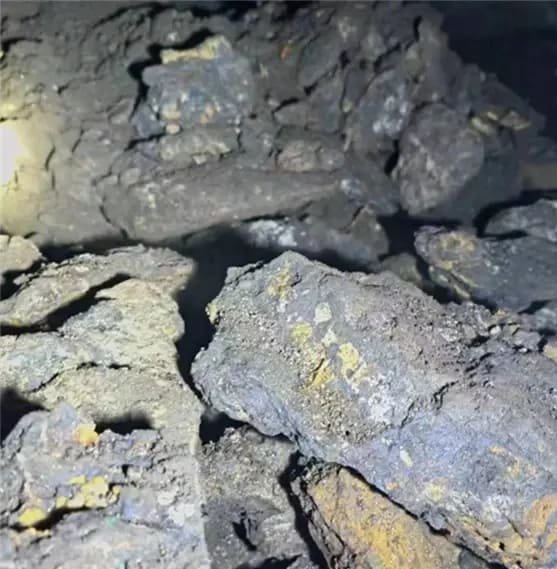

Product Advantage
1. Safe & Easy to Manage
CO2 gas fracturing: physical phase change, no explosives/detonation. Weak vibration (≤2cm/s), controlled flying rocks, no civil explosive approval, safe for high-gas mines.
2. Green & Eco-Friendly
Non-toxic food-grade CO2, no harmful gases/residues. 85% dust reduction, noise ≤85dB, recycled industrial CO2, dual-carbon compliant.
3. High Efficiency & Cost-Saving
CO2 gas fracturing: 5-10x faster than traditional tools. 600x expansion in 4ms, fracturing tubes reusable ≥2000 times, 30% cost cut, no post-ventilation.
4. Precise & High-Quality
Adjustable pressure (200-300MPa) for all lithologies, directional fracturing, less over-excavation, stable millisecond delay effect.
5. Widely Applicable
CO2 gas fracturing for mines, tunnels, infrastructure. Safe in sensitive areas, -40℃~60℃, mountains, narrow spaces; boosts gas extraction
Real-world Use Cases
Application Scenes

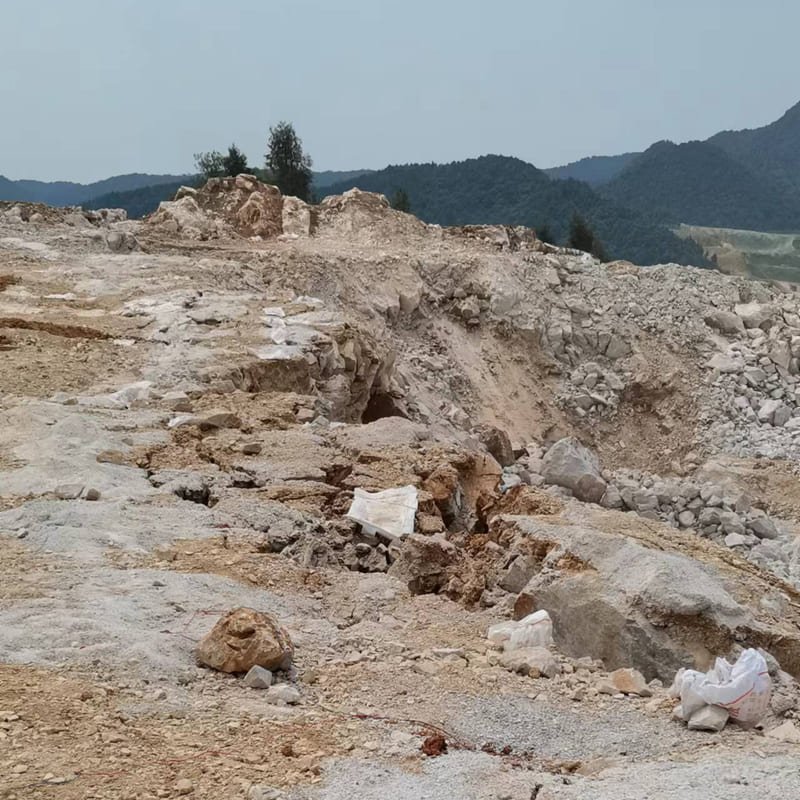

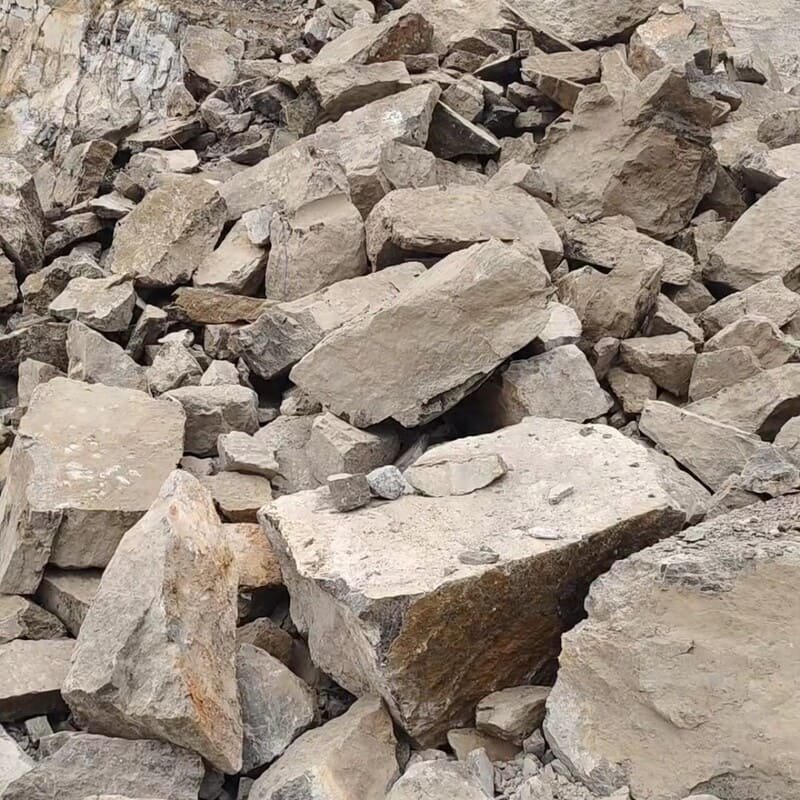

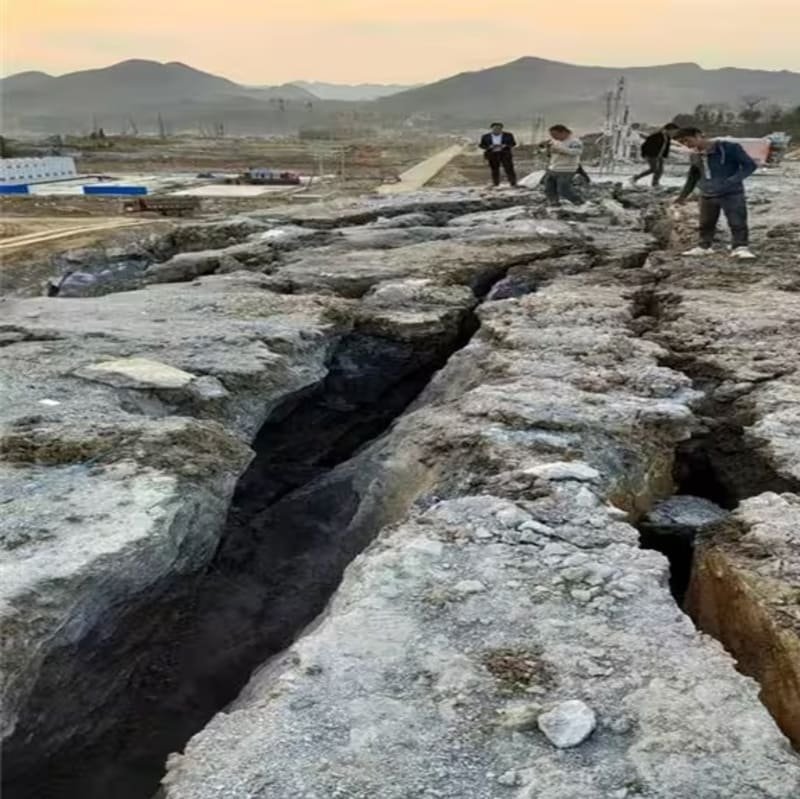

Co2 rock breaking system has a very wide range of application areas. At present, the main application areas are:

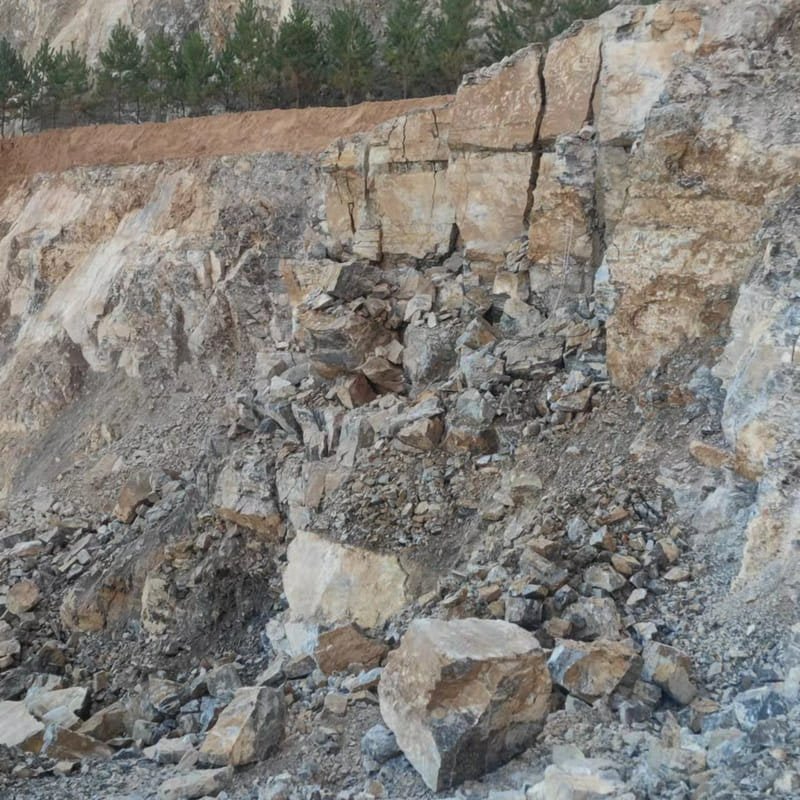

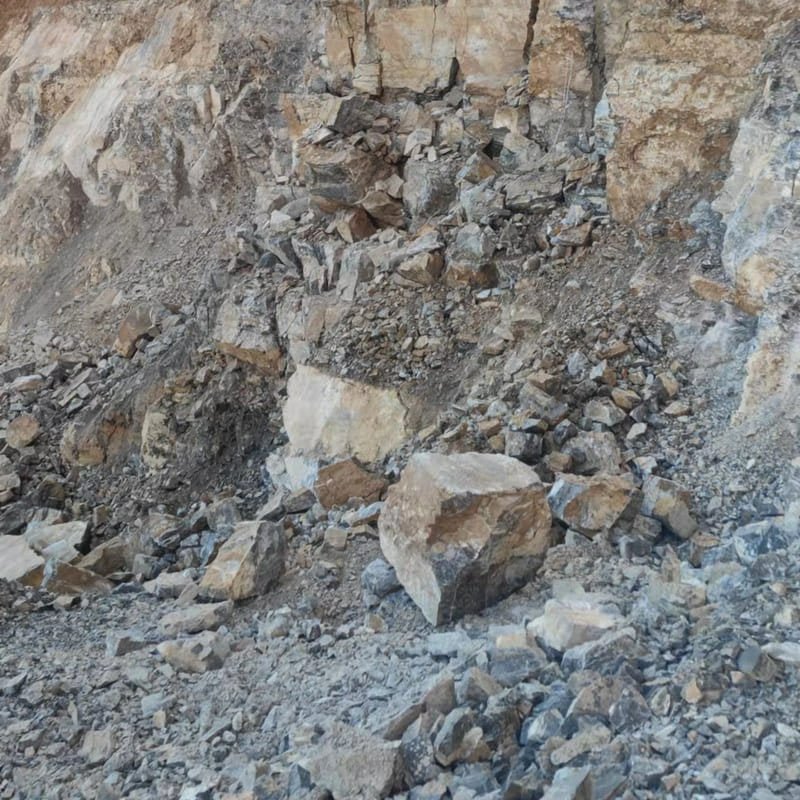

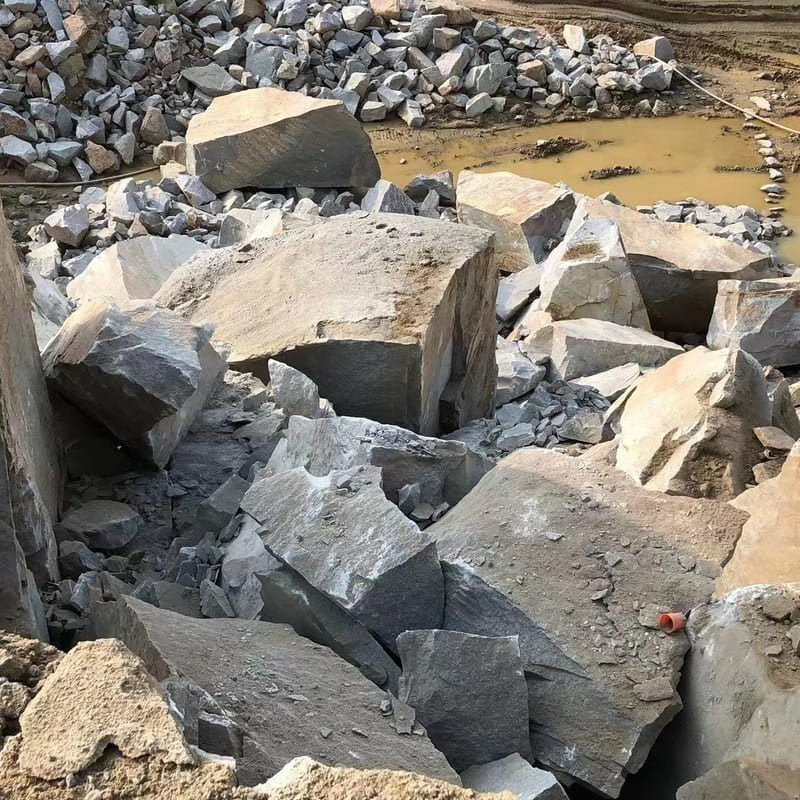

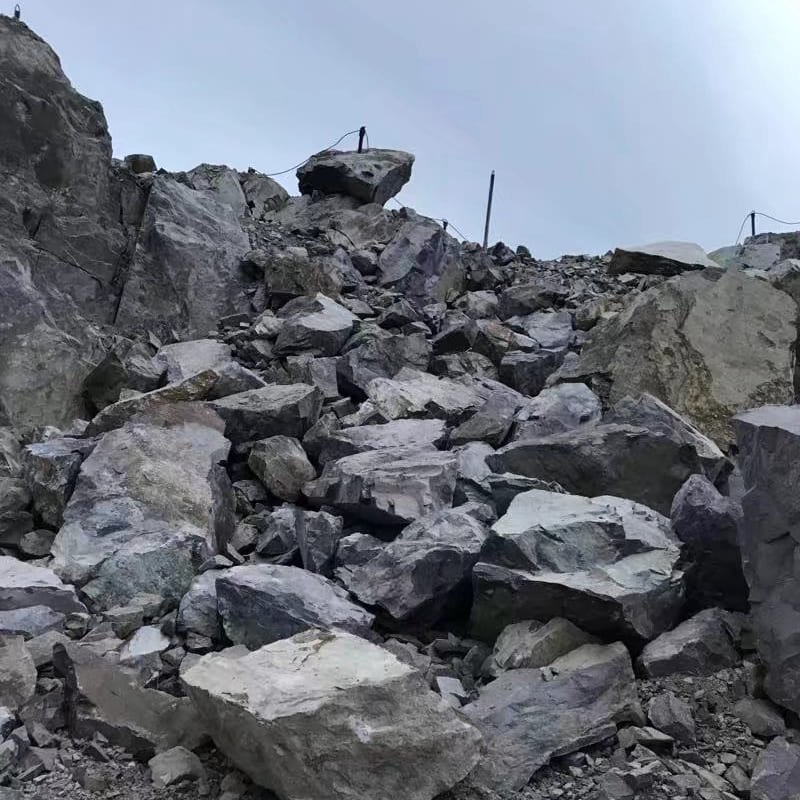

1 Mining of open-pitmine, quarry;

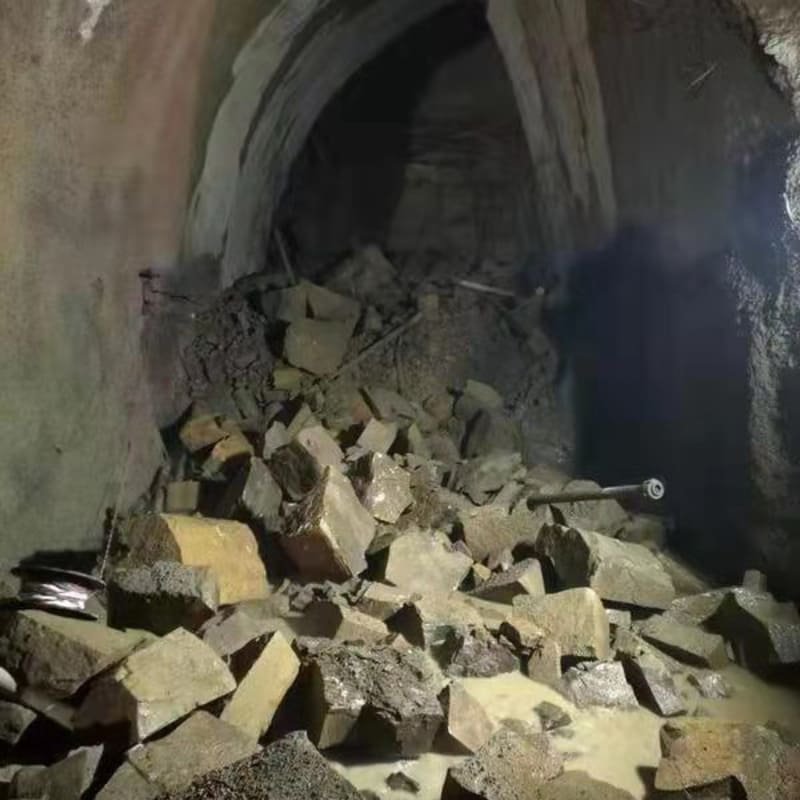

2 Excavating, mining, roof pressure-relief and expansion-wall mining of underground coal mines, especially deep-hole presplitting blasting in coal bed for gas predrainage;
3 Sectionsandareas where explosives are not permitted;
4 Desilting and blockage removal in cement plants and steel mills.
